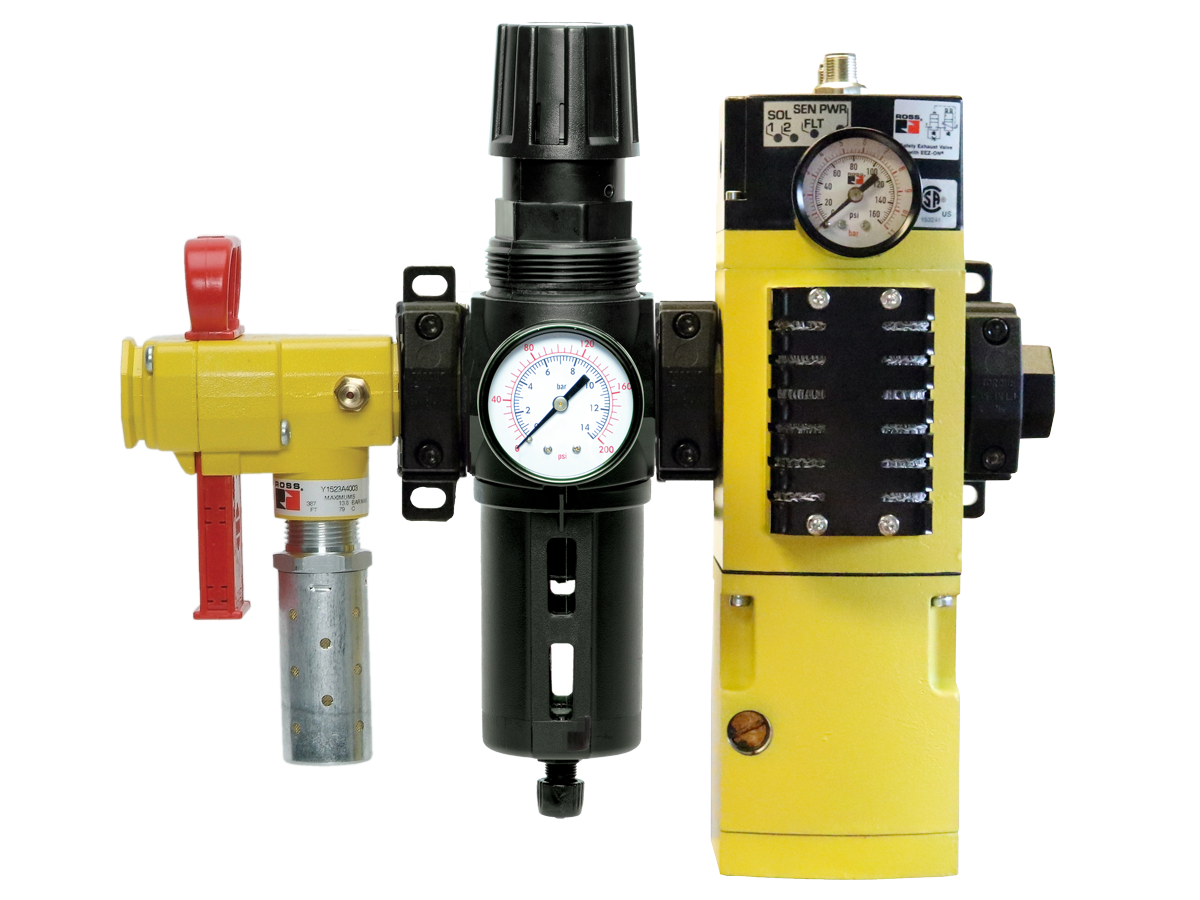

Safe Air Entry Assembly with M35 Series Safe Exhaust Valve RCM35S5GPXMCCA

  • Classic or Modular Lockout L-O-X® Valve
  • Filter, Integrated Filter/Regulator, and Lubricator with metal bowls
  • M35 Series Safe Exhaust valves rated for Category 4, PL e
  • SISTEMA Library Available for download

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277


Product Information

Valve Type Safe Air Entry
Valve Series M35
Soft Start Included
Monitoring External
Voltage 24 VDC
Electrical Connection M12
Gauge Analog Gauge
Lockout Series Modular Series
Filter Regulator Intergrated Unit
Lubricator Not Included
Silencer Built-in
Plate Mount Included
Safety Category Category 4
PL Rating PL e
Safety Integrity Level SIL 3
DGUV Certification Yes
CE Certification Yes
EAC Declaration Yes
CSA Certification Yes
Thread G
Lockout Location Downstream of FRL
Drip Leg Not Included
Pin Configuration Solenoids (C), Sensors (C)
Port Size (In-Out) 3/4"
Port Size (Exhaust) 3/4"
