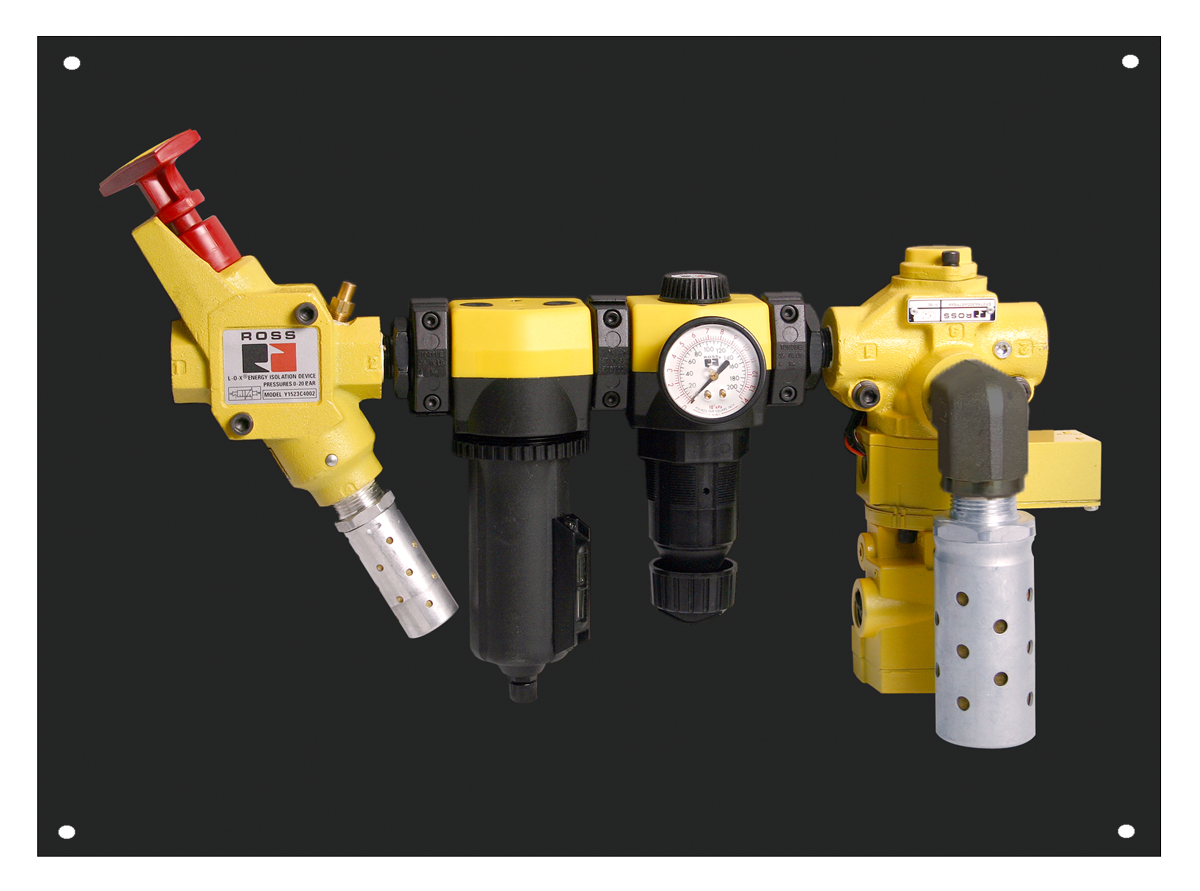

Safe Air Entry Assembly with SV27 Series Safe Exhaust Valve RC216L-06Z
- Classic or Modular Lockout L-O-X® Valve
- Filter, Integrated Filter/Regulator, and Lubricator with metal bowls
- SV27 Series Safe Exhaust valves rated for Category 2, PL c
- Mounting plate included
- SISTEMA Library Available for download
Product Information
| Valve Type | Safe Air Entry |
| Valve Series | SV27 |
| Soft Start | Not Included |
| Monitoring | External |
| Electrical Connection | Mini, M12 |
| Thread | NPT |
| Gauge | Not Included |
| Lockout Series | Classic |
| Lockout Location | Upstream of FRL |
| Extra Port Block | Not Included |
| Extra Port Block Location | Not Included |
| Filter Regulator | Side by Side Units |
| Lubricator | Not Included |
| Silencer | Not Included |
| Plate Mount | Included |
| Drip Leg | Not Included |
| Safety Category | Category 2 |
| PL Rating | PL c |
| Safety Integrity Level | SIL 2 |
| DGUV Certification | Pending |
| CE Certification | Yes |
| CSA/UL Certification | Yes |
| Voltage | 110 VAC |
| Port Size (In-Out) | 1" |
| Port Size (Exhaust) | 1" |
+
Safe Air Entry Assembly with SV27 Series Safe Exhaust Valve
RC216L-06Z
Contact Us for a 3D Model
+
Safe Air Entry Assembly with SV27 Series Safe Exhaust Valve
RC216L-06Z
Contact ROSS UK for Ordering Information
+
