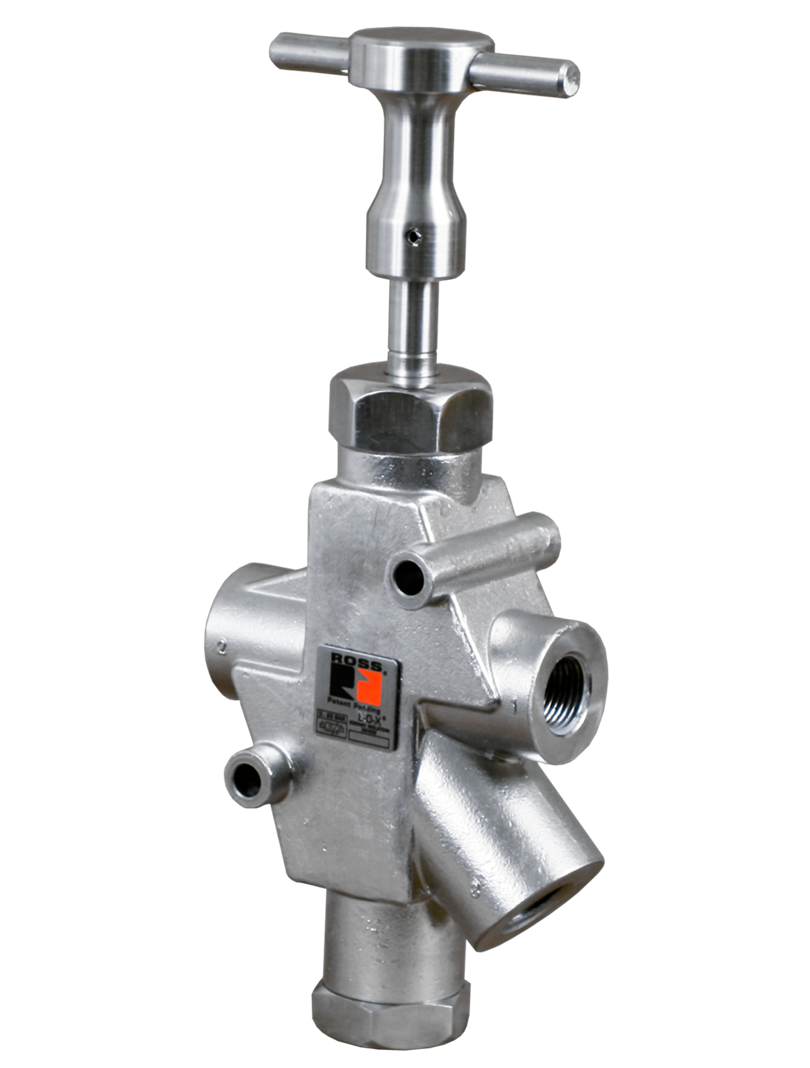

15 Series Lockout L-O-X Valves 1523B6004

  • Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
  • Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
  • Design only allows the valve to be lockable in the OFF (closed) position
  • Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
  • Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277


Product Information

Series 15 Series Stainless Steel
Actuation Manual
Function 3/2
Soft Start Not Included
Construction Spool
Mounting In-line
Width (mm) 89.9
Thread Type NPT
Ambient Temperature (Celcius) -1 to 80
Media Temperature (Celsius) -1 to 80
Fluid Media Filtered Air
Operating Pressure (bar) 0 to 20.7
Valve Body Material 316 Stainless Steel
Poppet/Spool Material Stainless Steel
Seal Material Fluorocarbon
Safety Category Category 1
DGUV Certification No
CE Certification No
EAC Declaration Yes
CSA/UL Certification No
PL Rating PL c
Exhaust Size 1"
Body Size 1"
Length (mm) 63.5
Height (mm) 356.9
Weight (kg) 5.9
Cv (1-2) 14.3
Cv (2-3) 17.0
Inlet Size 1"
Outlet Size 1"
