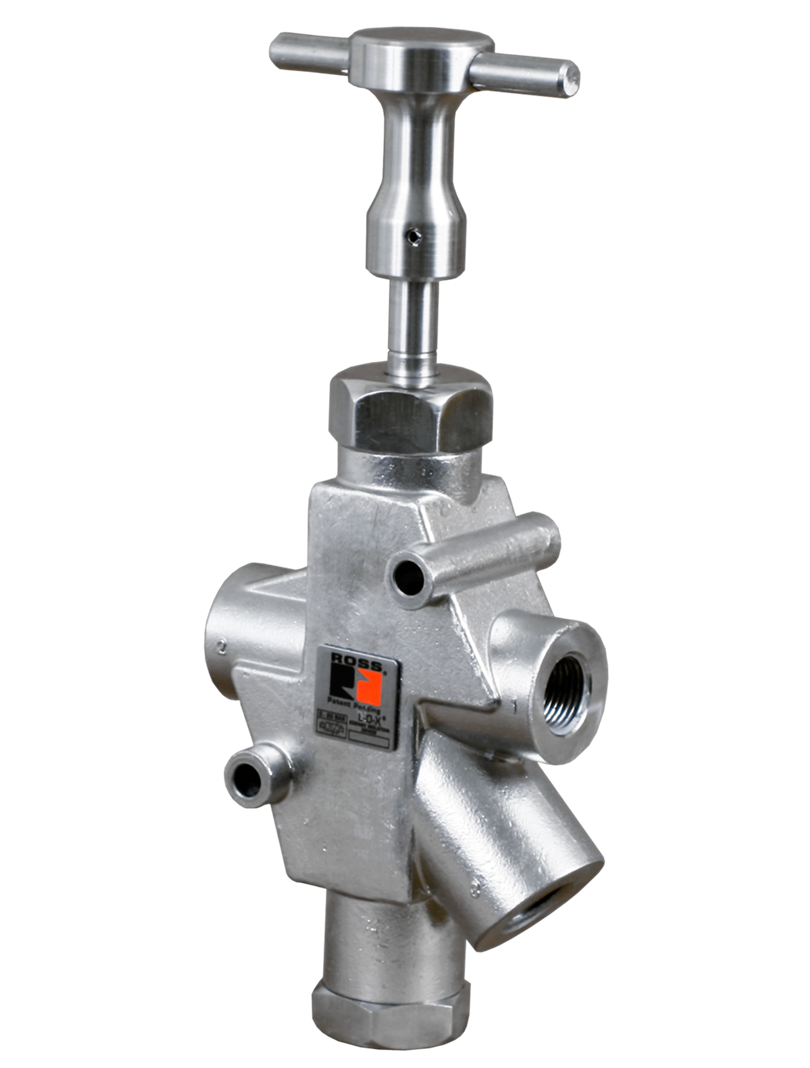

15 Series Lockout L-O-X® Valves 1523B5004
- Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Design only allows the valve to be lockable in the OFF (closed) position
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
- Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch
Product Information
| Series | 15 Series Stainless Steel |
| Actuation | Manual |
| Function | 3/2 |
| Soft Start | Not Included |
| Construction | Spool |
| Mounting | In-line |
| Thread Type | NPT |
| Ambient Temperature (Celcius) | -1 to 80 |
| Media Temperature (Celsius) | -1 to 80 |
| Fluid Media | Filtered Air |
| Valve Body Material | 316 Stainless Steel |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Fluorocarbon |
| Safety Category | Category 1 |
| DGUV Certification | No |
| CE Certification | No |
| EAC Declaration | Yes |
| CSA/UL Certification | No |
| PL Rating | PL c |
| Exhaust Size | 1" |
| Length (mm) | 89.9 |
| Operating Pressure (bar) | 0 to 20.7 |
| Inlet Size | 3/4 |
| Outlet Size | 3/4 |
| Width (mm) | 53.4 |
| Body Size | 1 |
| Height (mm) | 356.9 |
| Weight (kg) | 5.9 |
| Ports 1-2 Flow | 14.0 Cv (14000 Nl/min) |
| Ports 2-3 Flow | 17.0 Cv (17000 Nl/min) |
+
