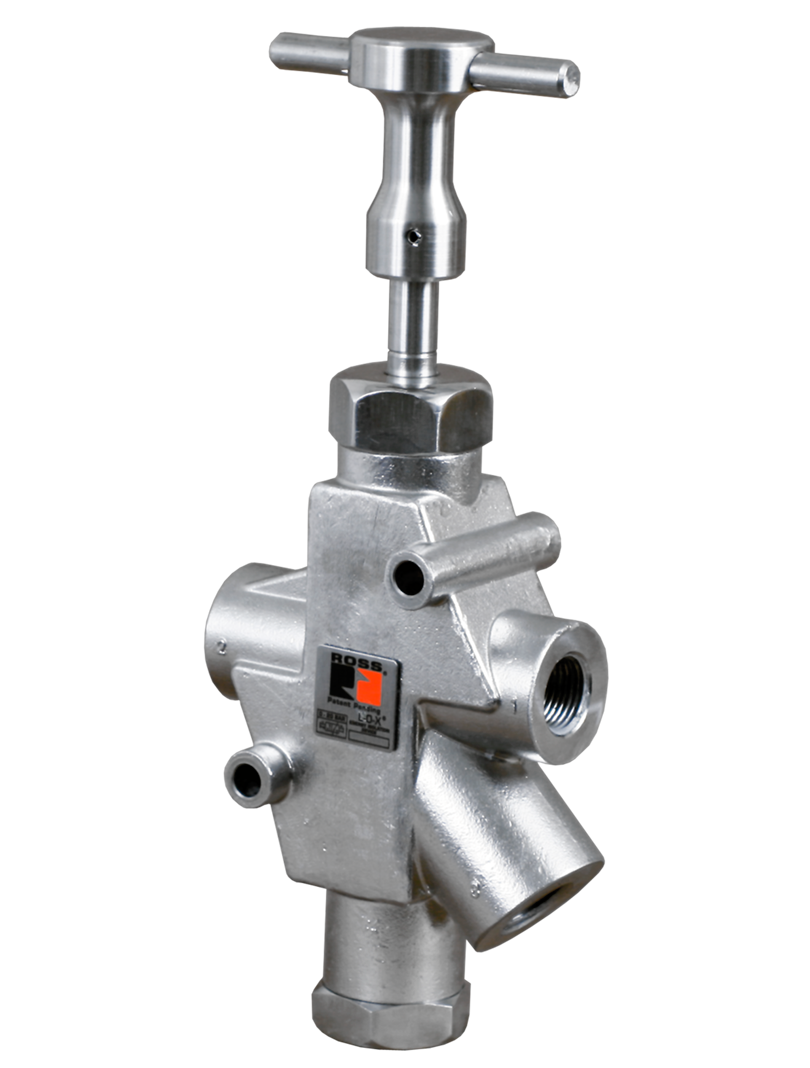

15 Series Lockout L-O-X® Valves 1523B3004

  • Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
  • Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
  • Design only allows the valve to be lockable in the OFF (closed) position
  • Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
  • Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277


Product Information

Series 15 Series Stainless Steel
Actuation Manual
Function 3/2
Soft Start Not Included
Construction Spool
Mounting In-line
Thread Type NPT
Ambient Temperature (Celcius) -1 to 80
Media Temperature (Celsius) -1 to 80
Fluid Media Filtered Air
Valve Body Material 316 Stainless Steel
Poppet/Spool Material Stainless Steel
Seal Material Fluorocarbon
Safety Category Category 1
DGUV Certification No
CE Certification No
EAC Declaration Yes
CSA/UL Certification No
Inlet Size 3/8
Outlet Size 3/8
Exhaust Size 1/2"
PL Rating PL c
Body Size 1/2
Operating Pressure (bar) 0 to 20.7
Length (mm) 108
Width (mm) 59.8
Height (mm) 265.8
Ports 2-3 Flow 6.2 Cv (6100 Nl/min)
Weight (kg) 2.7
Ports 1-2 Flow 5.8 Cv (5700 Nl/min)
