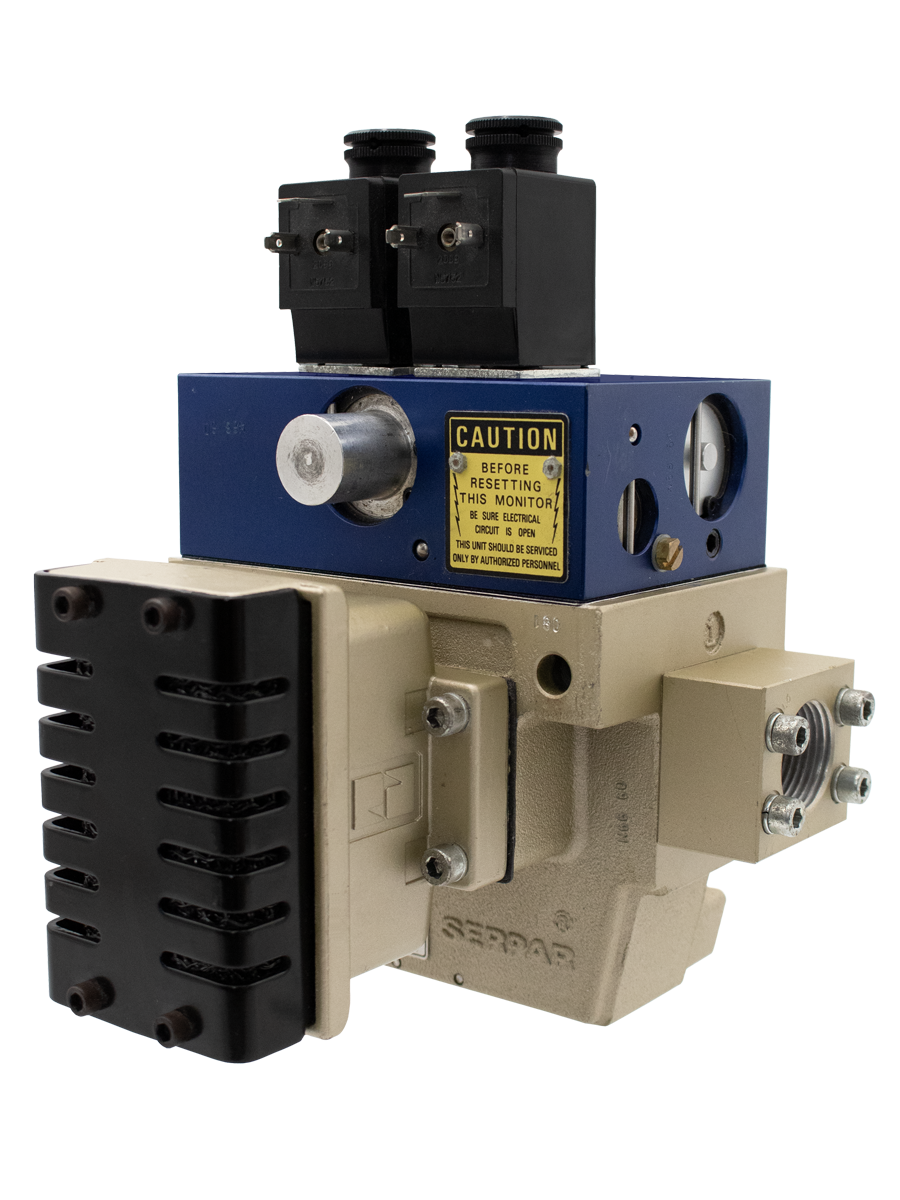

Double Valves with Pneumatic L-G Monitor, Ports 3/8 to 3/4 D3573D4242Z
- Internal monitoring – requires no additional monitoring circuitry
- Automatic lock-out/inhibit upon detection of a malfunction
- Default to de-energized position upon fault detection
- Dedicated reset function
- No undesired automatic reset upon removal of electrical or pneumatic energy sources
- Built-in non-clogging silencers
Product Information
| Flange | Without Flange |
| Inlet Side | Right Side |
| Port Thread | BSPP |
| Voltage | 120 VAC |
| Reset Type | Air Signal |
| Mounting Type | In-line |
| Status Indicator | Port Available |
| Monitor Type | Pneumatic |
| Override | Without Override |
| Input to Main Solenoid | Dual |
| Switches for External Monitoring | N/A |
| Solenoid Connection | DIN |
+
Double Valves with Pneumatic L-G Monitor, Ports 3/8 to 3/4
D3573D4242Z
Contact Us for a 3D Model
+
Double Valves with Pneumatic L-G Monitor, Ports 3/8 to 3/4
D3573D4242Z
Contact ROSS UK for Ordering Information
+
