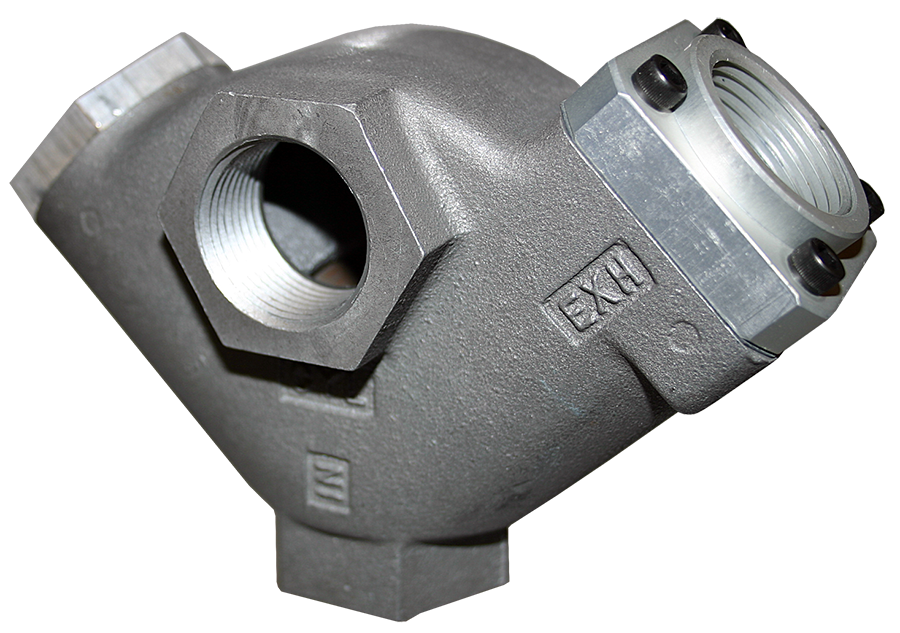

Quick Exhaust Valves 1868A5005
- Inline Mounting
- Poppet Construction
- Quick Cylinder Reversal
Product Information
| Valve Type | Quick Exhaust Valve |
| Series | 18 |
| Application | General |
| Actuation | Pneumatic |
| Function | 3/2 |
| Thread Type | NPT |
| Construction | Poppet |
| Mounting | Inline |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Valve Body Material | Cast Aluminum |
| Size | 1" |
| Cv (1-2) | 7.2 |
| Cv (1-4) | 10 |
| Length | 6.50 in (165 mm) |
| Width | 2.56 in (65 mm) |
| Height | 4.31 in (110 mm) |
| Weight | 2.5 lb (1.1 kg) |
| Inlet Pipe Size | 3/4" |
| Outlet Pipe Size | 3/4" |
| Exhaust Pipe Size | 1" |
+
Quick Exhaust Valves
1868A5005
Contact Us for a 3D Model
+
Quick Exhaust Valves
1868A5005
Contact ROSS UK for Ordering Information
+
