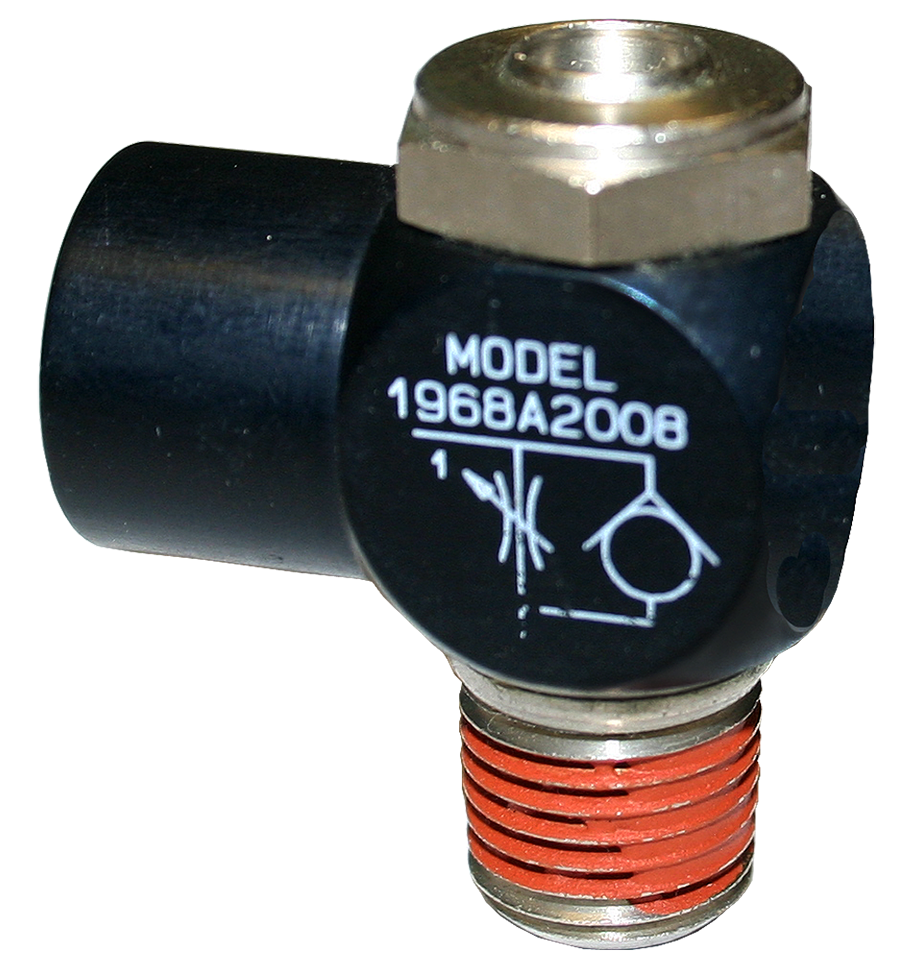

Flow Controls 1968A4008
- Low profile, high capacity & right angle series available
- Available with NPT & BSPP port threads
- Low profile series includes slot & knob adjustment options
- High capacity series includes inline & offset orientation options
- Right angle series includes slot & knob adjustment options
Product Information
| Valve Type | Flow Control Valve |
| Series | 19 |
| Application | General |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | NPT |
| Construction | Poppet |
| Mounting | Inline |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Valve Body Material | Cast Aluminum |
| Adjustment | Slot |
| Profile | Right Angle |
| Inlet Pipe Size | 1/2" |
| Outlet Pipe Size | 1/2" |
| Avg Cv | 2.8 |
| Length | 1.2 in (30 mm) |
| Width | 1.9 in (47 mm) |
| Height | 2.7 in (68 mm) |
| Weight | 0.34 lb (0.15 kg) |
+
