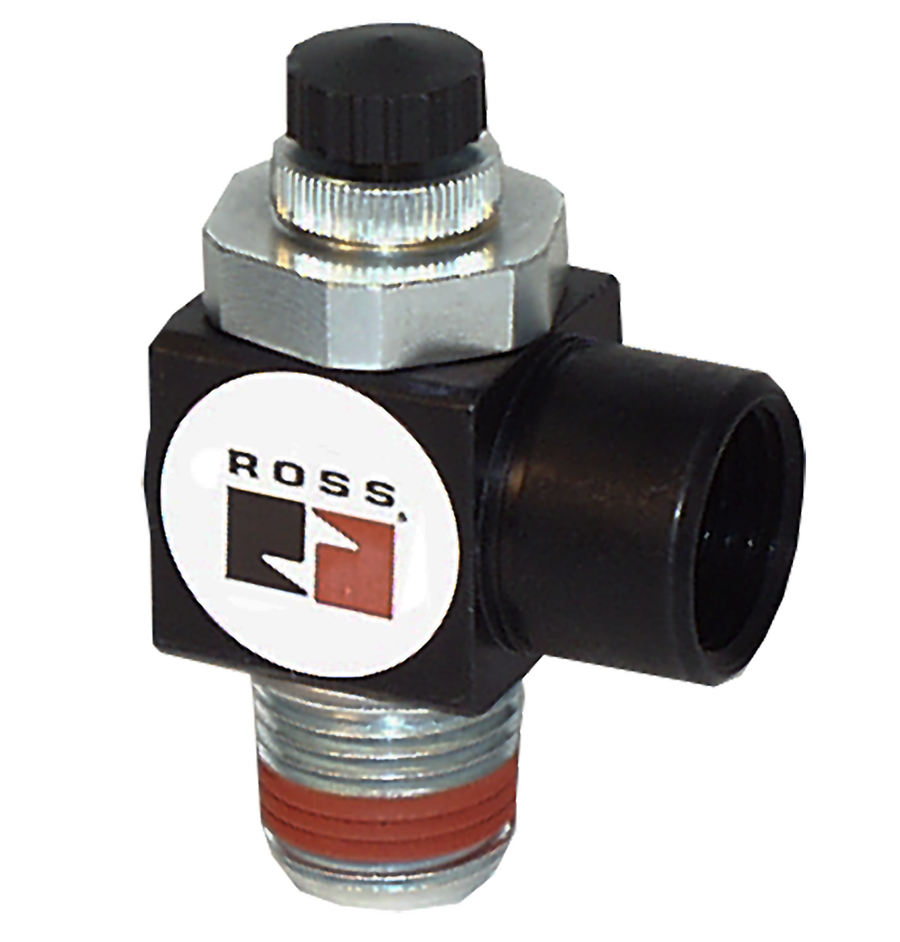

Flow Controls 1968A1118



  • Low profile, high capacity & right angle series available
  • Available with NPT & BSPP port threads
  • Low profile series includes slot & knob adjustment options
  • High capacity series includes inline & offset orientation options
  • Right angle series includes slot & knob adjustment options

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277


Product Information

Valve Type Flow Control Valve
Series 19
Application General
Actuation Pneumatic
Function 2/2
Thread Type NPT
Inlet Pipe Size 1/8"
Outlet Pipe Size 1/8"
Construction Poppet
Mounting Inline
Avg Cv 0.3
Ambient Temperature 40 to 175 F (4 to 80 C)
Media Temperature 40 to 175 F (4 to 80 C)
Fluid Media Filtered Air
Operating Pressure 5 to 150 psig (0.3 to 10 bar)
Length 0.63 in (16 mm)
Width 1.0 in (25 mm)
Height 1.4 in (36 mm)
Valve Body Material Cast Aluminum
Profile Right Angle
Weight 0.8 lb (0.4 kg)
Adjustment Knob
