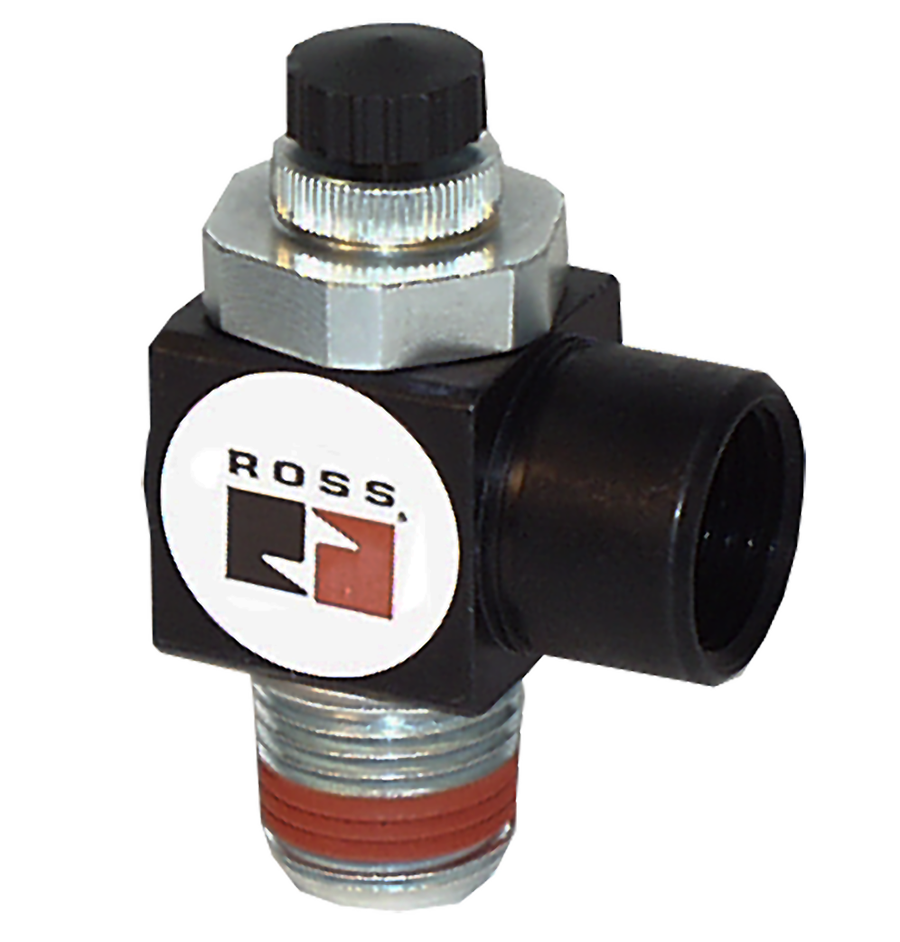

Flow Controls 1968A1018
- Low profile, high capacity & right angle series available
- Available with NPT & BSPP port threads
- Low profile series includes slot & knob adjustment options
- High capacity series includes inline & offset orientation options
- Right angle series includes slot & knob adjustment options
Product Information
| Valve Type | Flow Control Valve |
| Series | 19 |
| Application | General |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | NPT |
| Inlet Pipe Size | 1/8" |
| Outlet Pipe Size | 1/8" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 0.3 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 0.63 in (16 mm) |
| Width | 1.0 in (25 mm) |
| Height | 1.4 in (36 mm) |
| Valve Body Material | Cast Aluminum |
| Profile | Right Angle |
| Weight | 0.8 lb (0.4 kg) |
| Adjustment | Knob |
+
Flow Controls
1968A1018
Contact Us for a 3D Model
+
Flow Controls
1968A1018
Contact ROSS UK for Ordering Information
+
