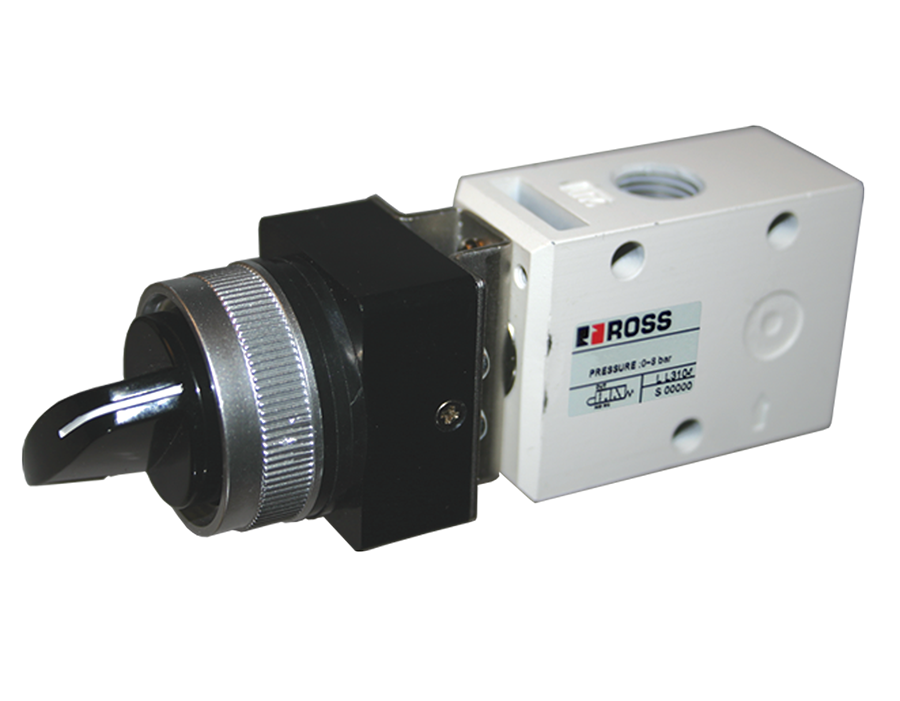

Selector Switch Valves 1223B2SLB
- 3/2 inline, spool & sleeve valve
- Black switch knob actuator
- Normally Close, or Normally Open operations simply by piping the inlet supply accordingly
Product Information
Valve Type | Directional Control |
Series | 12 |
Application | General |
Actuation | Manual Selector Switch |
Function | 3/2 |
Default Position | Normally Open |
Return | Detented |
Thread Type | NPT |
Construction | Spool & Sleeve |
Mounting | Inline |
Ambient Temperature | 40 to 175 F (4 to 80 C) |
Media Temperature | 40 to 175 F (4 to 80 C) |
Fluid Media | Filtered air |
Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
Length | 1.46 in (37 mm) |
Width | 4.6 in (118 mm) |
Height | 1.26 in (32 mm) |
Valve Body Material | Cast Aluminum |
Inlet Pipe Size | 1/4" |
Outlet Pipe Size | 1/4" |
Exhaust Pipe Size | 1/4" |
Avg Cv | 0.9 |
Weight | 0.37 lb (0.17 kg) |
