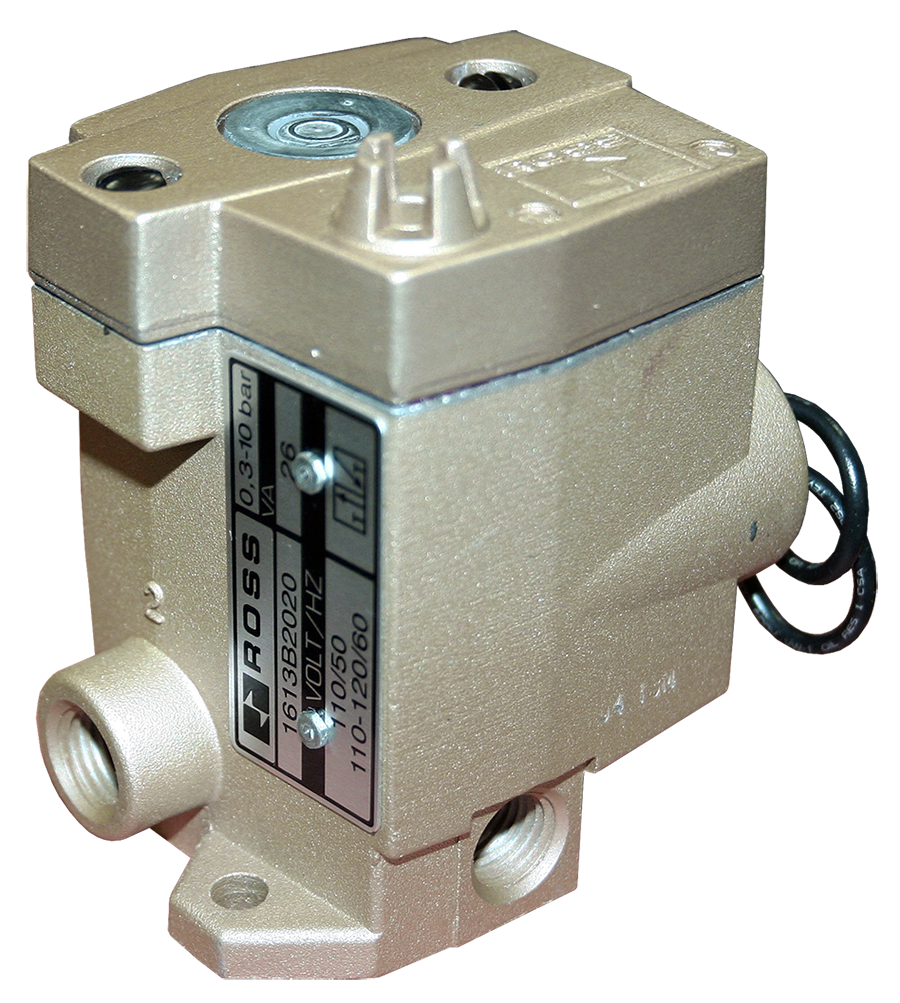

Inline Solenoid Poppet Valve [16 Series] 1616C2020W



  • Poppet construction for near zero leakage & high dirt tolerance
  • Self-cleaning
  • Wear compensating
  • Repeatability throughout the life of the valve
  • 3-way 2-position Normally Closed or Normally Open, and 4-way 2-position valves
  • Inline or manifold mounting

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277

Need Help? No Problem!

Technical & Customer Service

+44 (0)1254 872277


Product Information

Valve Type Directional Control
Series 16
Application General
Actuation Electrical
Function 3/2 Single Solenoid
Return Spring
Thread Type NPT
Exhaust Pipe Size 1/22
Construction Poppet
Connection Hardwired
Manual Override Non-locking
Avg Cv 0.3
Voltage 24 VDC
Duty Rating Continuous Duty
Power Consumption 14 watts
Ambient Temperature 40 to 120 F (4 to 50 C)
Ambient Temperature (Celcius) 4 to 50
Media Temperature 40 to 175 F (4 to 80 C)
Media Temperature (Celcius) 4 to 80
Fluid Media Filtered air
Length 2.58 in (66 mm)
Length (mm) 66
Valve Body Material Cast Aluminum
Poppet/Spool Material Acetal
Seal Material Buna-N
Default Position Normally Open
Inlet Pipe Size 1/4"
Outlet Pipe Size 1/4"
Mounting Manifold Base
Operating Pressure 30 to 150 psig (2 to 10 bar)
Operating Pressure (bar) 2 to 10
Width 2.75 in (70 mm)
Width (mm) 70
Height 4.73 in (120 mm)
Height (mm) 120
Weight 2.4 lb (1.1 kg)
Weight (kg) 1.1
