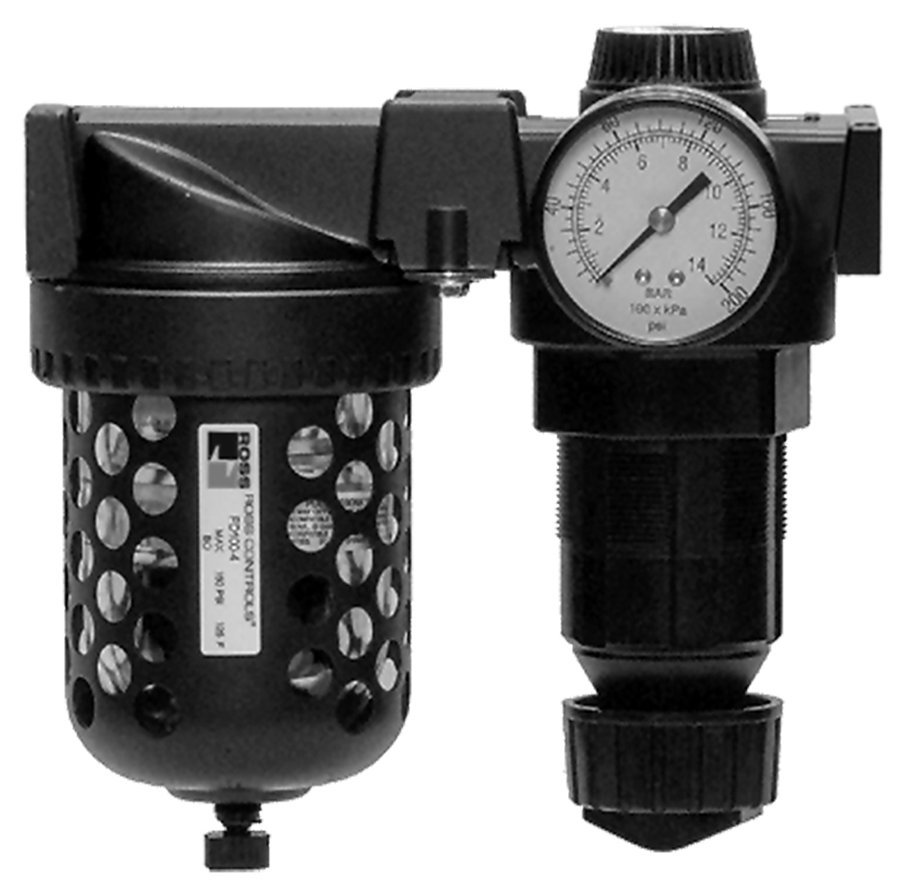

Full-Size Series 5F11B4220
- Modular mounting
- Piston-type regulator
- Polycarbonate plastic bowls with steel shatterguard, or zinc bowl with clear sight glass
- Automatic drain, or manual drain filter
Product Information
| PORT SIZE | 1/2 |
| PORT THREAD | NPT |
| REGULATOR TYPE | Piston |
| BOWL TYPE | Metal |
| DRAIN TYPE | Automatic |
| FILTER TYPE | 5 µm |
| FILTER MATERIAL | Polyethylene |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 200 (0 - 14) |
| PORT TYPE | Threaded Ports |
| MOUNTING | Modular |
| MAXIMUM FLOW | 130 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | 15 to 200 psig (1 to 14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 125 (0 - 8.6) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
Full-Size Series
5F11B4220
Contact Us for a 3D Model
+
Full-Size Series
5F11B4220
Contact ROSS UK for Ordering Information
+
