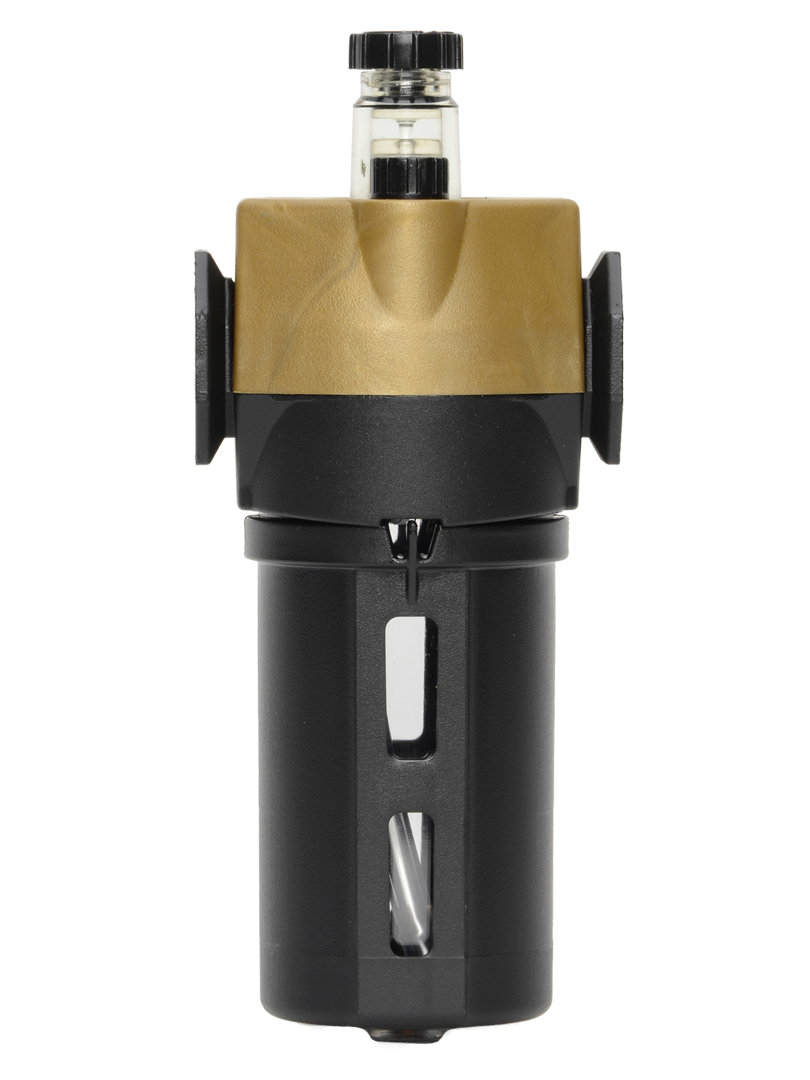

MD3 Series MD351MQCB2
- Modular or inline mounting
- Sight-feed design; transparent dome shows how much oil is being dispensed
- External adjusting knob, removable for tamper resistance
- Polycarbonate plastic bowl with steel shatterguard, or aluminum bowl with sight glass
- Extended metal bowl – option
Product Information
| PORT SIZE | 1/4 |
| PORT THREAD | BSPP |
| FILL METHOD | Quick-Fill Cap |
| CONSTRUCTION | Sight Feed |
| BOWL TYPE | Metal |
| BOWL SIZE | 6 oz (177 ml) |
| MOUNTING | Modular |
| PORT TYPE | Threaded Ports |
| MAXIMUM FLOW | 62 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 250 psig (17 bar) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD3 Series
MD351MQCB2
Contact Us for a 3D Model
+
MD3 Series
MD351MQCB2
Contact ROSS UK for Ordering Information
+
