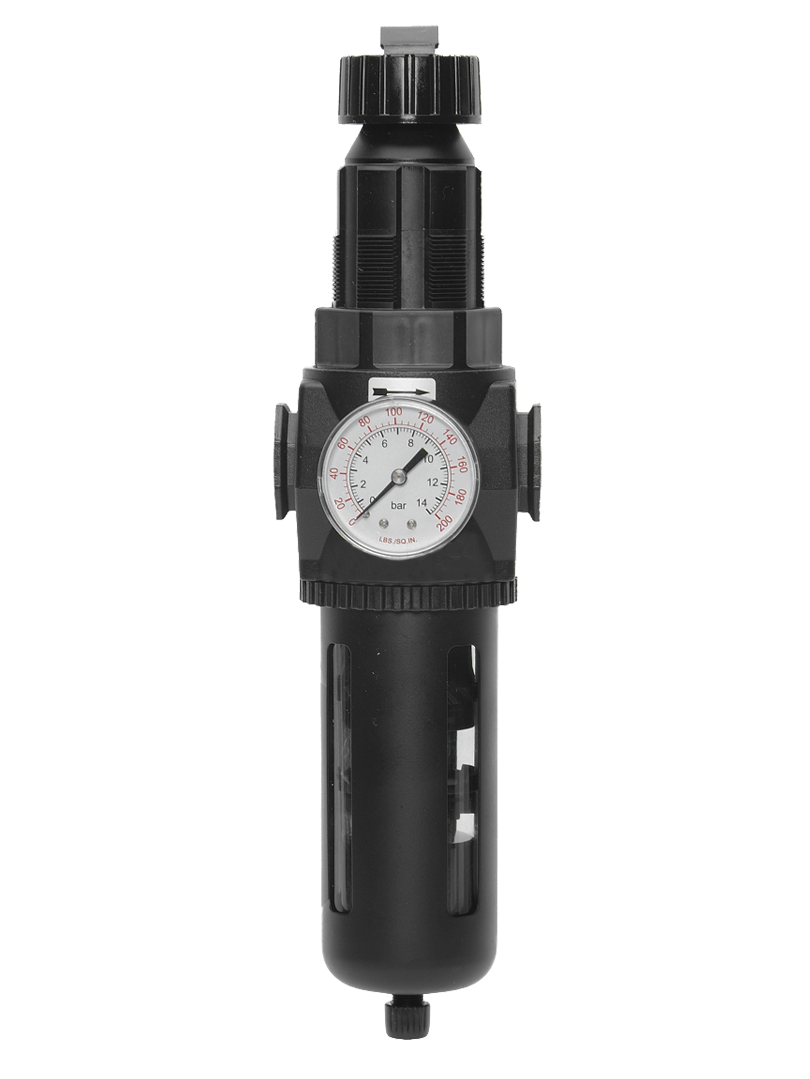

MD4 Series MD453PBABCBB
- Filter and regulator consolidated into a single assembly
- Modular mounting
- Pressure gauge included; two gauge ports
- Add on L-O-X® valve – option
- Polycarbonate plastic bowl with steel shatterguard, ormetal bowl with sight glass
- Automatic drain, or manual drain
- Self-relieving diaphragm-type regulator, or non-relieving
- Pressure adjustment locking key; tamper-resistant pressure setting
Product Information
| PORT SIZE | 3/8 |
| PORT THREAD | BSPP |
| PORT TYPE | Threaded Ports |
| FILTER TYPE | 5 µm |
| DRAIN TYPE | Automatic |
| BOWL TYPE | Polycarbonate |
| FLOW OPTION | Standard |
| FILTER MATERIAL | Sintered Bronze |
| CONSTRUCTION | Diaphragm |
| RELIEVING | Self-Relieving |
| GAUGE psig (bar) | 0 - 200 (0 - 14) |
| ADJUSTMENT | Knob |
| PANEL MOUNT NUT | Not Included |
| MOUNTING | Modular |
| MAXIMUM FLOW | 180 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 200 psig (Up to 14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 125 (0 - 8.6) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD4 Series
MD453PBABCBB
Contact Us for a 3D Model
+
MD4 Series
MD453PBABCBB
Contact ROSS UK for Ordering Information
+
