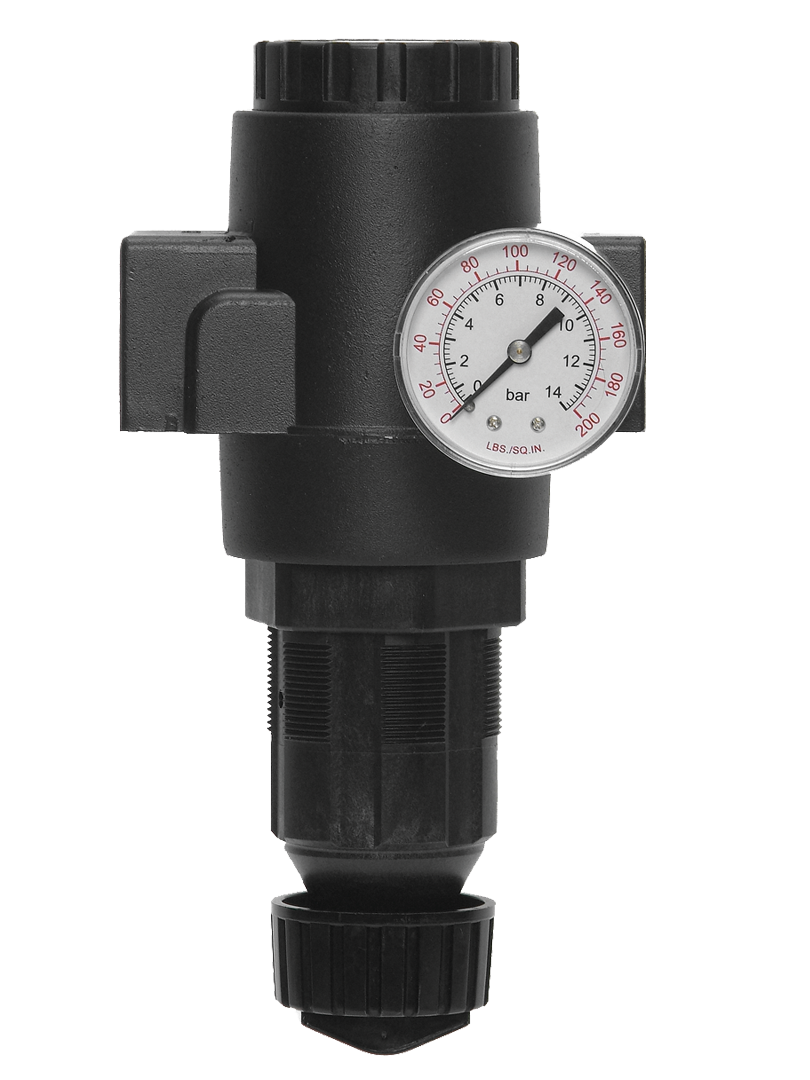

High Capacity Series C5211C7017
- Piston construction
- Self-relieving
Product Information
| PORT SIZE | 1-1/4 |
| PORT THREAD | BSPP |
| RELIEVING | Self-Relieving |
| FLOW OPTIONS | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0-200 (0-13.8) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Piston |
| MOUNTING | Inline |
| MAXIMUM FLOW | 725 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 100 (0 - 6.9) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
High Capacity Series
C5211C7017
Contact Us for a 3D Model
+
High Capacity Series
C5211C7017
Contact ROSS UK for Ordering Information
+
