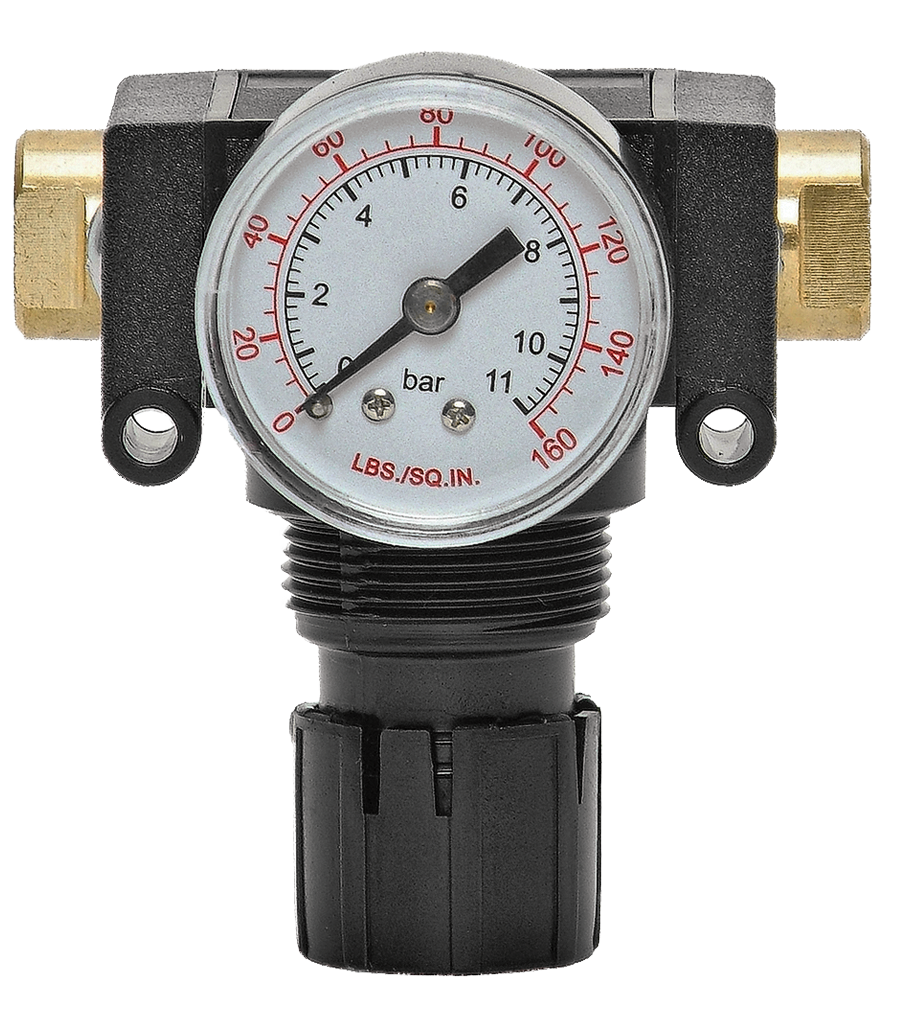

Bantam Series 5B06C0050
- Modular mounting
- Piston or diaphragm construction
- Self-relieving
- Threaded ports or quick connect tube fittings
Product Information
| PORT SIZE | 6 mm |
| PORT THREAD | - |
| RELIEVING | Self-relieving |
| FLOW OPTIONS | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 160 (0 -11) |
| CONSTRUCTION | Piston |
| MOUNTING | Modular |
| PORT TYPE | Tube Fitting |
| PANEL MOUNT NUT | Not Included |
| MAXIMUM FLOW | 23 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 150 psig (10 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0-125 (0-8.6) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
Bantam Series
5B06C0050
Contact Us for a 3D Model
+
Bantam Series
5B06C0050
Contact ROSS UK for Ordering Information
+
