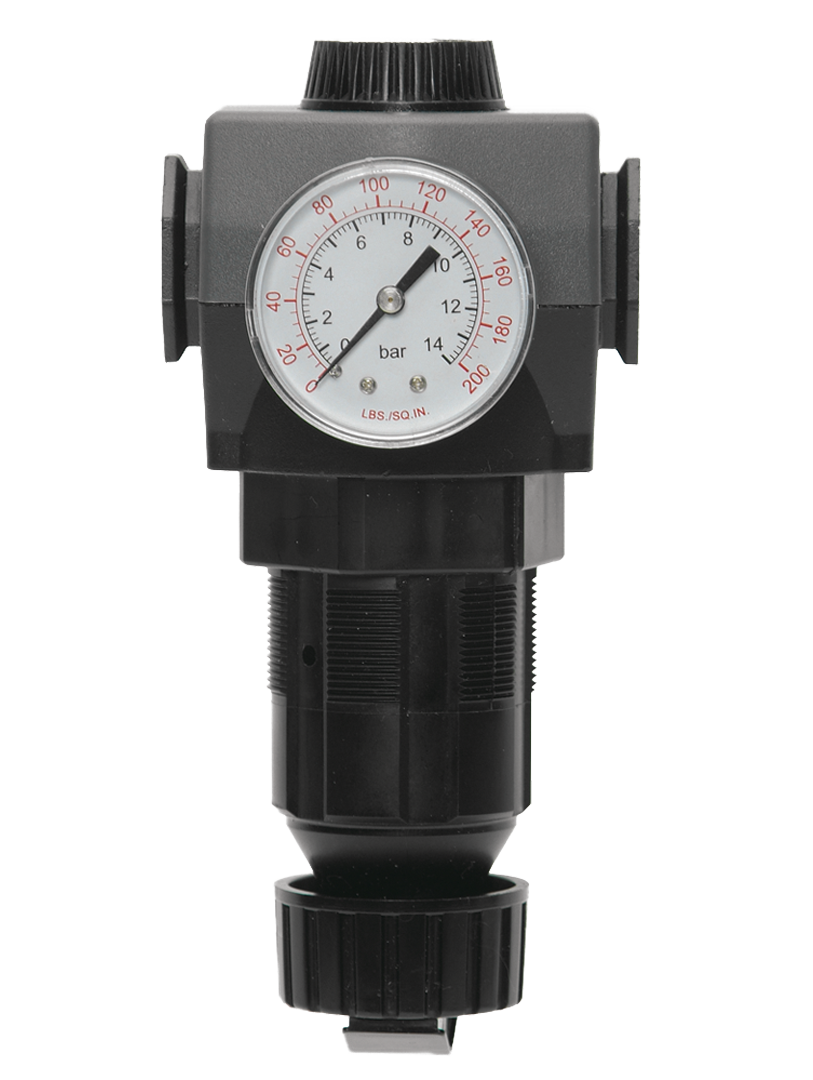

MD4 Series MD452KBRB52C
- Modular mounting
- Diaphragm construction
- Self-relieving
Product Information
| PORT SIZE | 3/4 |
| PORT THREAD | NPT |
| RELIEVING | Self-relieving |
| FLOW OPTIONS | Reverse |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 60 (0 - 4.1) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| PANEL MOUNT NUT | Not Included |
| MAXIMUM FLOW | 220 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 125 (0 - 8.6) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD4 Series
MD452KBRB52C
Contact Us for a 3D Model
+
MD4 Series
MD452KBRB52C
Contact ROSS UK for Ordering Information
+
