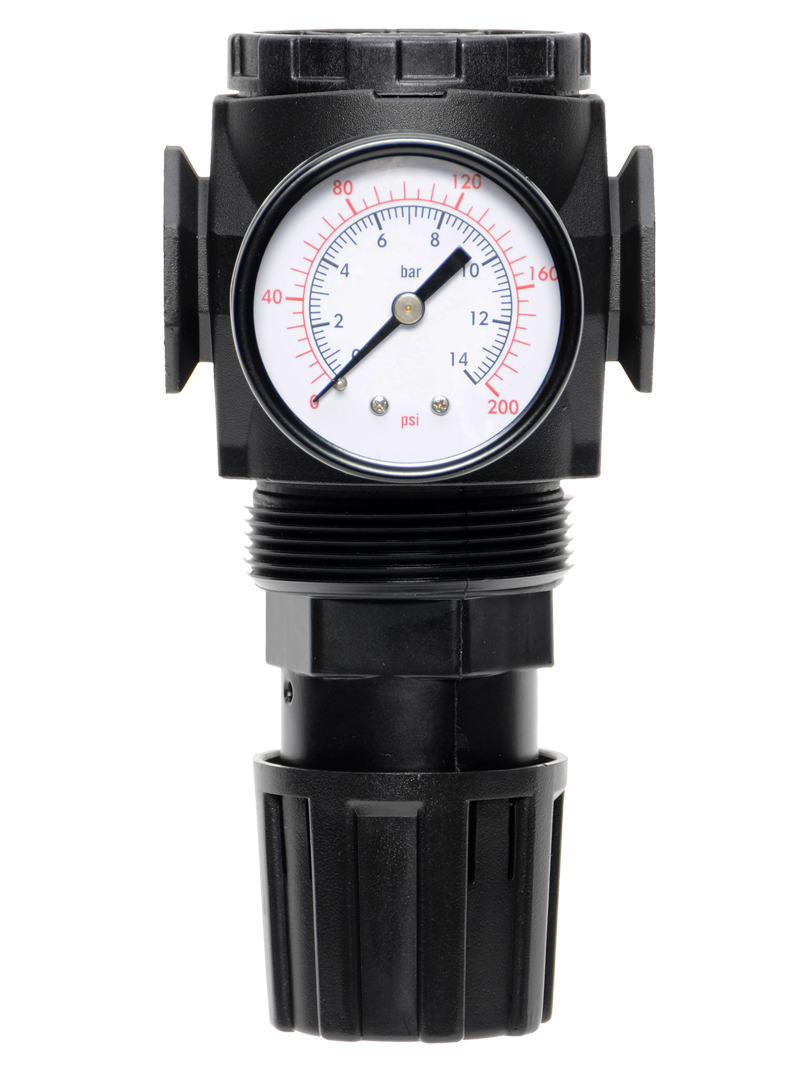

MD3 Series MD352LCRCC2B
- Modular mounting
- Diaphragm construction
- Self-relieving
- Reverse flow option
- Knob or T-Handle adjustment
Product Information
| PORT SIZE | 3/8 |
| PORT THREAD | BSPP |
| RELIEVING | Self-relieving |
| FLOW OPTIONS | Reverse |
| ADJUSTMENT | Locking Knob |
| GAUGE psig (bar) | 0 - 200 (0 - 13.8) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| PANEL MOUNT NUT | Not Included |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 200 psig (14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0-100 (0-6.9) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD3 Series
MD352LCRCC2B
Contact Us for a 3D Model
+
MD3 Series
MD352LCRCC2B
Contact ROSS UK for Ordering Information
+
